FEATURES & SPECIFICATIONS

• 8mm thick MS Plate fixed on CI Table
• Table Liners made from Kithul Border circumference made from local wood.
• Rettie Cone made from Phosphor Bronze or
• Crescent Battens made from Kithul Wood, fitted with Phosphor Bronze of Brass

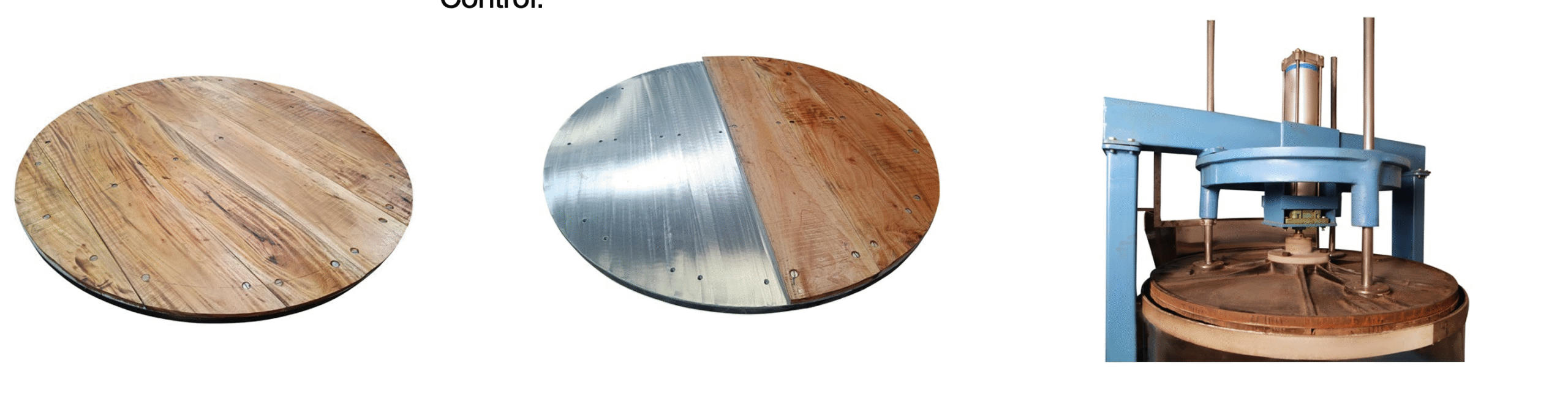

• Electro-pneumatically controlled, programmable Pressure Plate/Cap with AISI-304 Stainless Steel lining, with pneumatic Inching Control.
• AISI-304 grade Stainless Steel Leaf Jacket (Hood) with reinforced top and bottom edges and suitable feeding hopper.
• Heavy-duty & Reliable Pneumatic Cylinders, Flow-control & Solenoid Valves, FRL Units, Junction Boxes, etc.
• Fully Automatic & Programmable Control Panel, using Touch-screen HMI & PLC. Precision Regulators & Pressure Gauges are incorporated in the Control Panel.
• Main drive system, comprising of specially made vertical Heli-bevel Gearbox of 18:1 ratio, coupled with 4-step pulley (35/40/45/50 RPM), driven by 20 HP, VFD-compliant, 1,440 RPM, 50 Hz, IE3 Motor.
• Overall Size of Rolling Table – 2,900 L x 2,700 W x 2,550
• Effective Rolling Area – 1,875 mm Hood – 1,185 mm dia ID x 830 mm H.
• Genuine NTN Japanese Bearings, with “C-type” Oil seals of Pioneer
• High-quality, durable Epoxy Primer & Paints – White & Phiroza Blue for Machine & Guards and Signal Red for Moving Parts.
